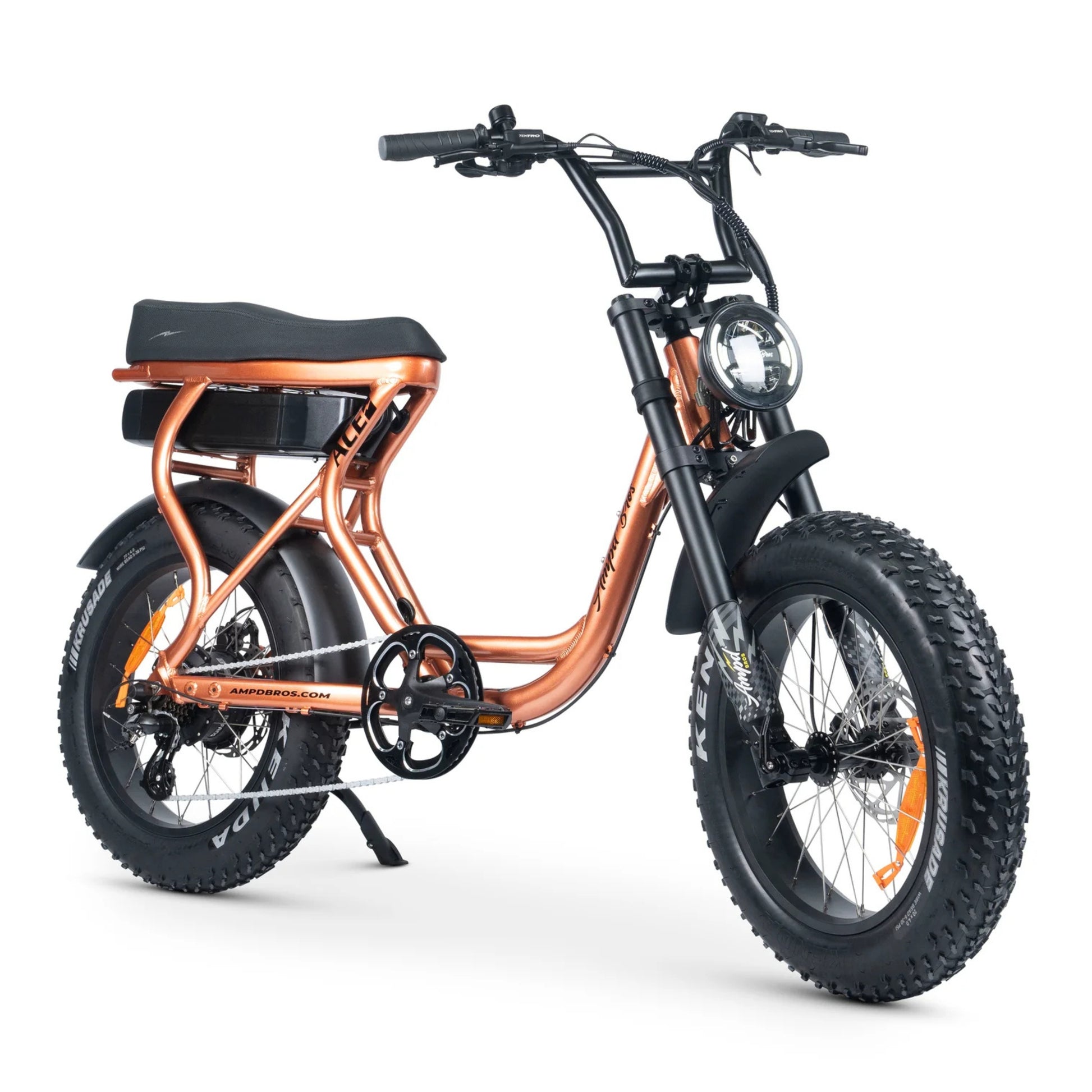

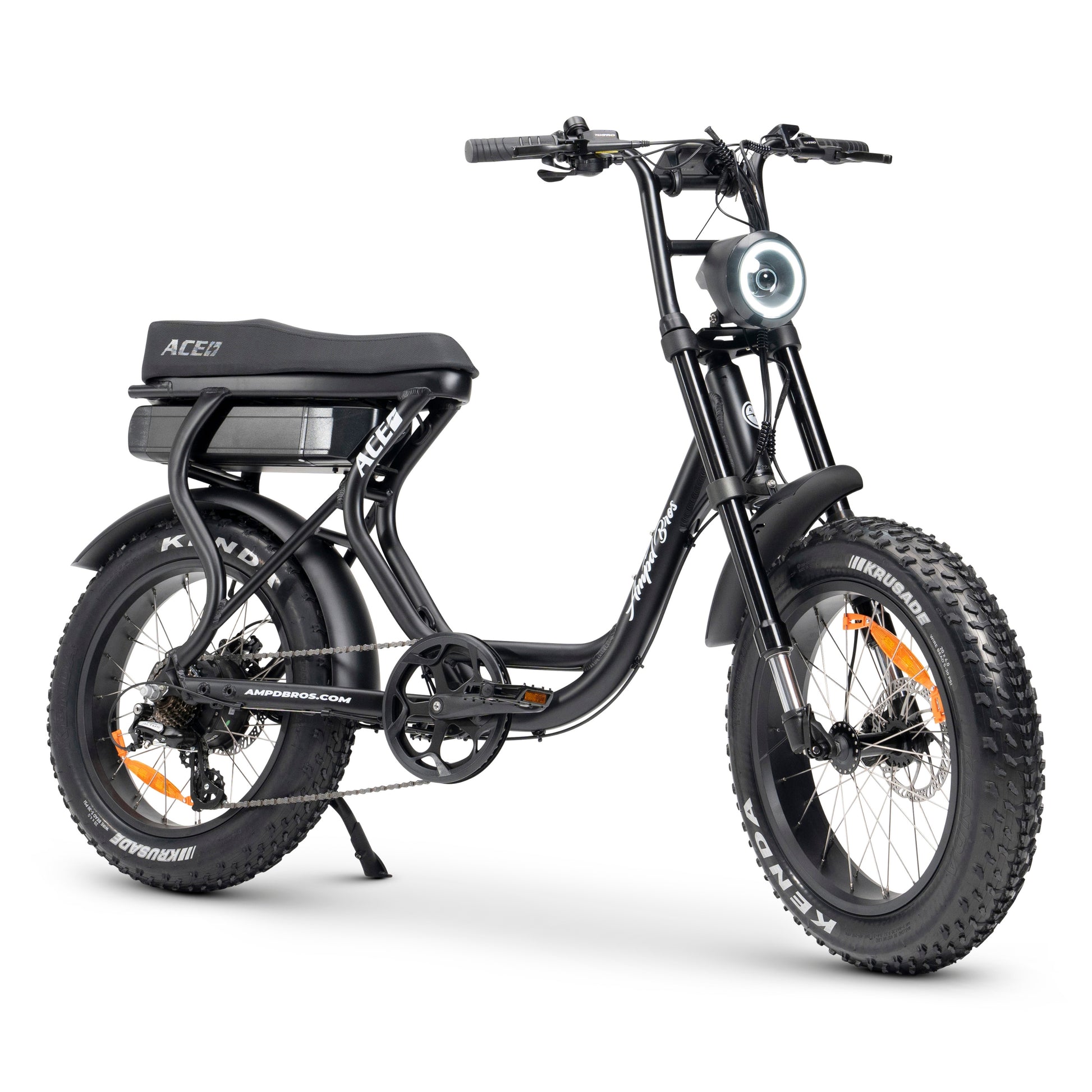

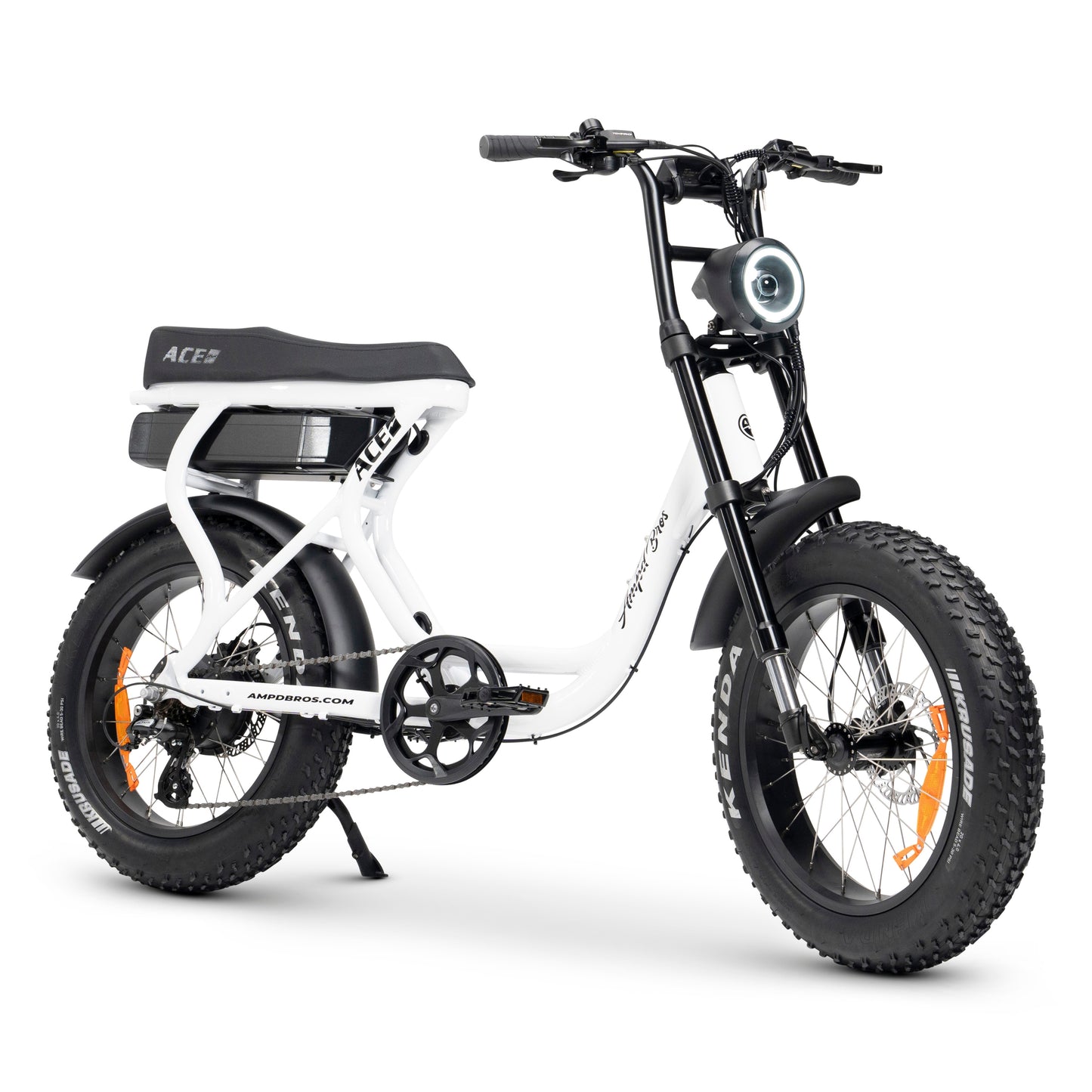

Ampd Bros ACE-S Plus+ Electric Bike

Description

Introducing the ACE-S Plus+ Electric Fat Tyre Bike – Elevate Your Adventure!

Unveiling the ACE-S Plus+, a high-performance, high octane variant of our ACE-S model that takes your riding experience to new heights. This upgraded version features front suspension forks, delivering a smoother ride across diverse terrains. Equipped with a larger more powerful 750W Bafang Rear Hub Motor, it boasts a higher top speed, allowing you to conquer every trail with ease.

Revamped and refined, the ACE-S Plus+ Electric Bike redefines your riding experience with its sleek Low Bar Step Through frame design, ensuring easy access and unparalleled comfort. Originating from our popular ACE-X model, the ACE-S maintains the robust construction that sets it apart.

Designed in conjunction with our in-house family team and continuously sought after since its debut in 2019, the ACE Bike continues to create waves nationwide.

Loaded with premium features and celebrated year after year as Australia's favourite fat tyre bike the ACE range boasts a Shimano 7 Speed Derailleur, vibrant colour options and a cutting-edge battery system with our Latest GEN3 Aluminium Battery which encompasses 21700 cells that are 30% larger than our competitors, paired with a Smart BMS for optimal performance and safety.

The ACE-S Plus+ takes performance up a notch with our Custom Master Control unit, providing top-tier power density and advanced motor control algorithms. Seamlessly integrating light controls, improving reliability and simplifying diagnostics, this bike is powered by Bafang's High Torque Motor, ready to conquer diverse terrains.

What's New for Series 3?

 NEW GEN3 Battery with Integrated Tail & Brake Lights
Increased Battery Capacity to 20AH
Increased Motor from 500W to 750W
Updated 30% Larger Battery Cells to Premium Samsung 21700 Cells
Integration of Bafang's Latest Gen Hub Motor
Frame Design Improvements caters for our new Series 3 Rear Cargo Rack & Internal Frame Basket System installation
The ACE-S ensures no adventure is off-limits, accommodating two riders with its spacious seat. The removable Samsung Battery delivers an incredible 80km range on a single charge. From beaches to hills, dirt tracks to pavements, the ACE-S handles it all effortlessly. Opt for the Off-Road Throttle Kit for cruising ease, and embrace rapid gear shifts with the Shimano Rapid Fire shifter and Altus transmission.

Join the ACE revolution and unlock limitless possibilities with the ACE-S Electric Fat Tyre Bike – your ticket to exhilarating adventures awaits!

Checkout the Range of Options & Accessories for your New ACE Bike or need help customising your bike? Speak to our Friendly Team on what works best for you.

Specifications

ACE & ACE PLUS+ SERIES 3
Speed & Range
 Range Standard Models 60km+
 Range Plus & Rally Models 80km+
 Speed Standard Models 25km/h (or Unlock up to 38km/h for Private Property Use)
 Speed Plus & Rally Models 25km/h (or Unlock up to 45km/h for Private Property Use)
Battery
 Standard Models 48V / 720Wh, 15AH
 Plus+ & Rally Models 48V / 960Wh, 20AH
 Samsung Premium 21700 Lithium cells
 Battery is removable and can be charged in bike or separately.
Ride Modes
 Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
 Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
 Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit
Features
 Hill Ability Up to 15º Degree / 25% Incline PAS
 Seat Custom Large Black Dual Seat for 2 Riders (Brown on Classic Models)
 Warranty 2 Years (1 Year on Batteries)

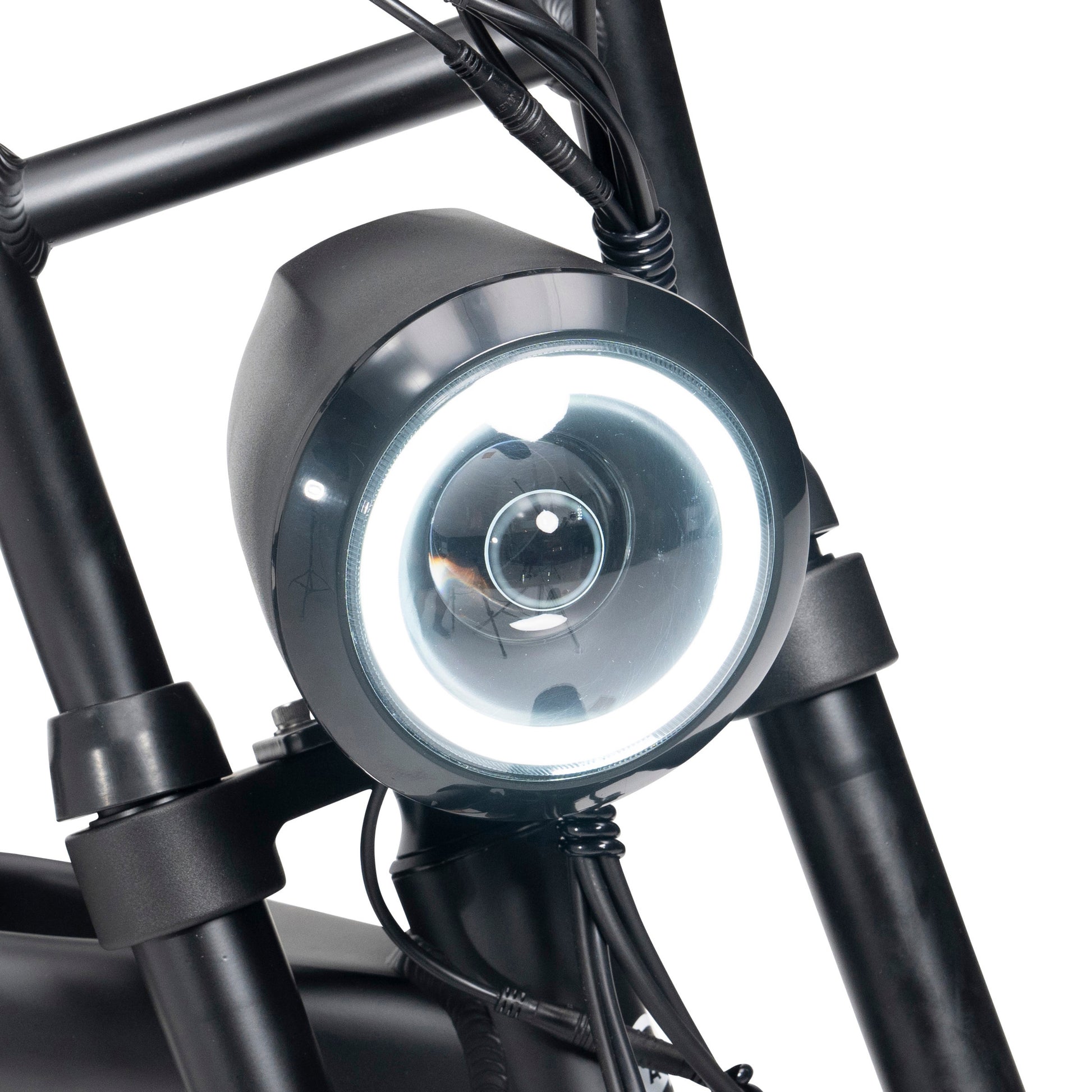

 Lights Front LED 220lm Headlight with DRL
 Lights Rear LED Brake Light inbuilt to battery pack
 Grips Black Velo Wide Comfort (Brown on Classic Models)
 Bell Yes
Brakes
 All Models Tektro Hydraulic Disc
 Discs 160mm
 E-Brakes Yes Motor Safety Cut Off
Display

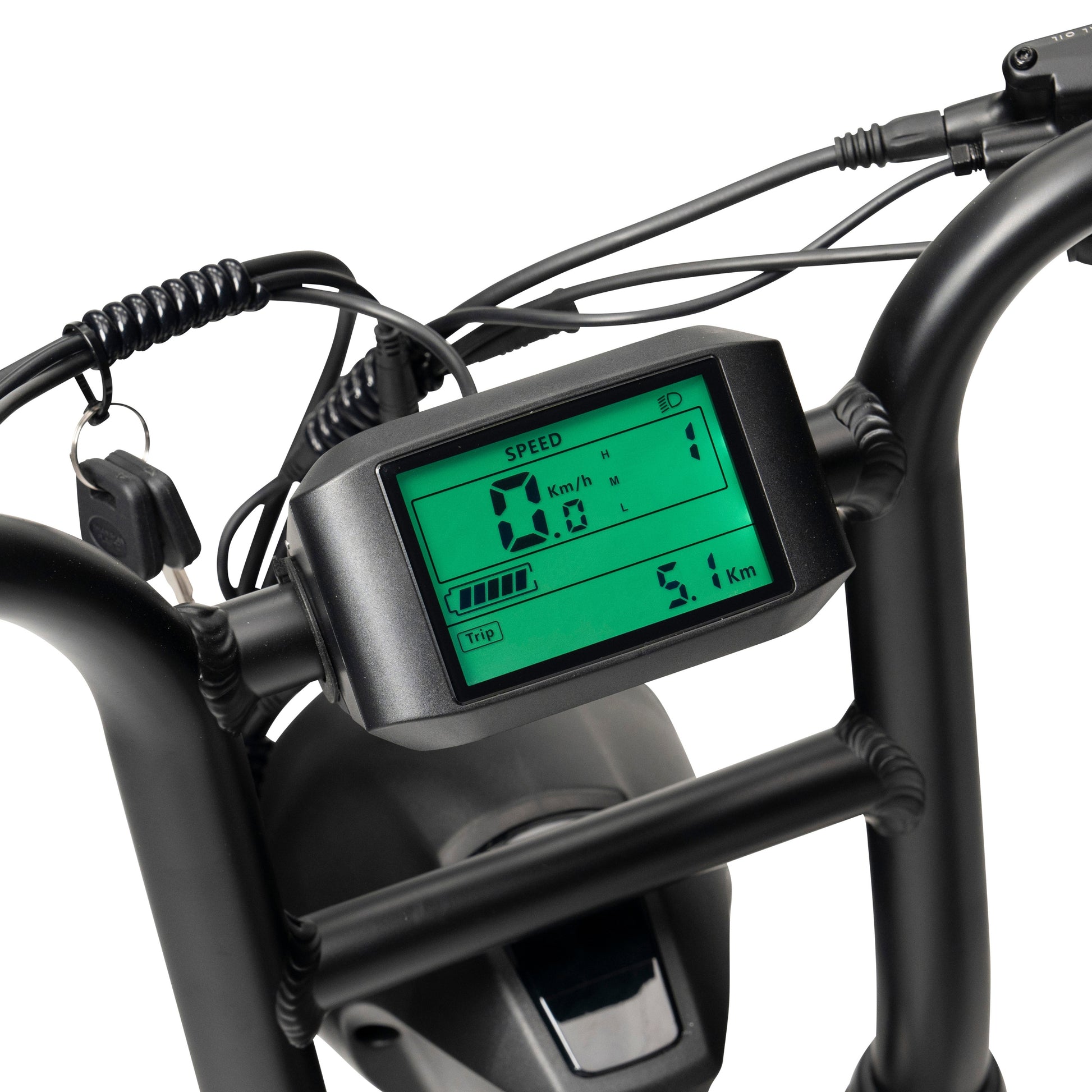

LCD Multi-Function with ODO, Trip, Battery Level, Speed etc
Controller
Ampd Brothers Custom - Best-in-class power density and state-of-the-art motor control algorithms.
Drivetrain
 Electric Motor Bafang RMG062 Latest Generation Rear Hub Drive
 Power Output Standard Models 250W Limited - Can be Unlocked to 500W for Off Road Private Property Use.
 Power Output Plus+ & Rally Models 250W Limited - Can be Unlocked to 750W for Off Road Private Property Use.
Torque 65N.m and 80N.m on Plus/Rally Models
 Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
 Derailleur Shimano Altus
 Pedals Wellgo Alloy - Black
 Chain KMC Z Series High Performance

Construction
 Frame Aluminium - "X" Step Over or "S" Step Through Low Bar Designs
 Handlebars Aluminium Motorcycle Inspired with Adjustable Height
 Fenders Matte Black Aluminium
Suspension
 Standard Models No Suspension
 Plus+ & Rally Models Front Independent
Wheels & Tyres
 20x4.0" Kenda Krusade Fat Mud Tyres
 20x4.0" CST Tourance Fat Street Tyres (Rally Plus+ Models Only)
Charging
7-8hrs 15Ah Batteries with Standard 2A Included Charger
9-10hrs 20Ah Batteries with Standard 2A Included Charger
Optional 5A Fast Charger Available for 2.5x Faster Charging

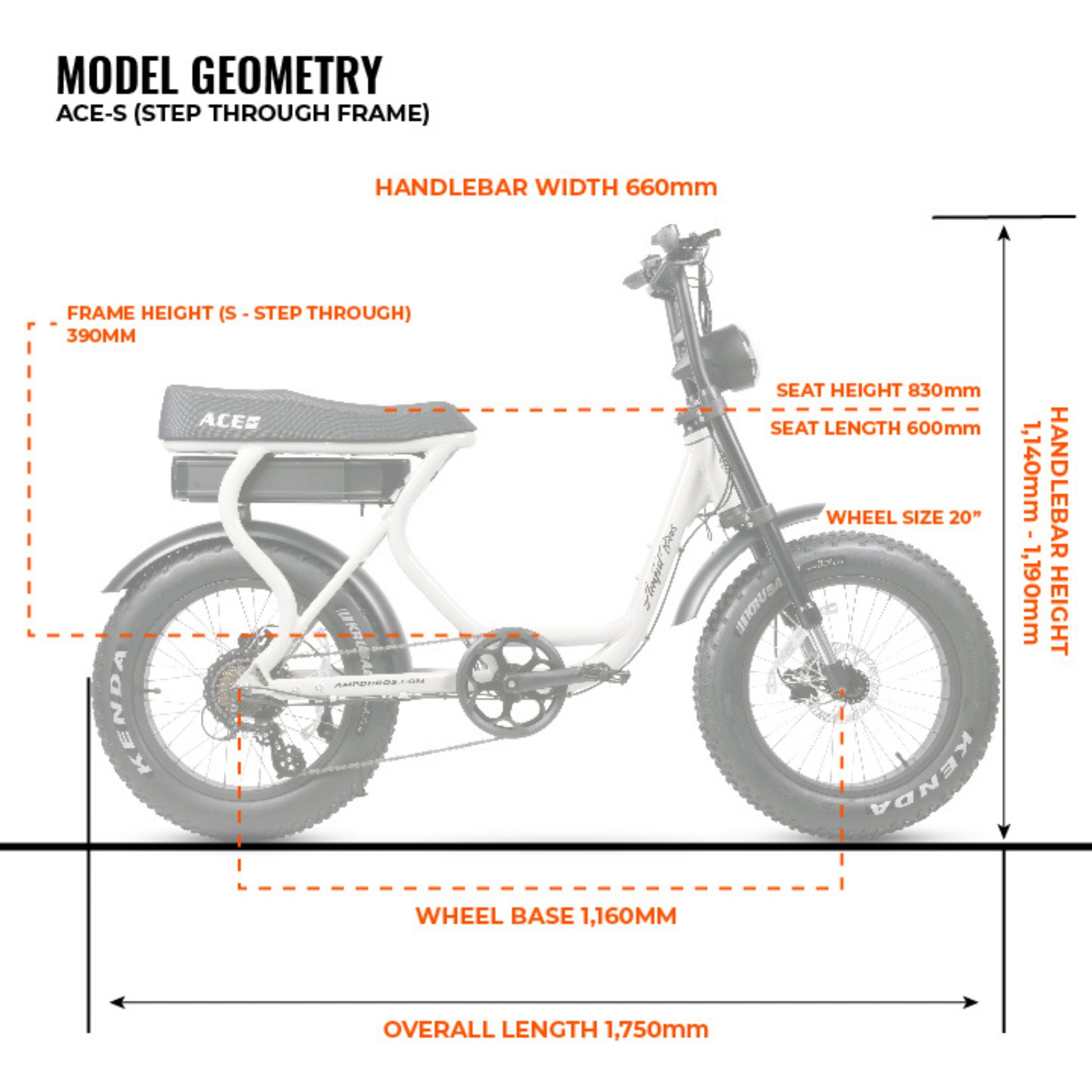

Dimensions
 Overall Length 1,750 mm
 Handlebar Height 1,140 - 1,190 mm
 Handlebar Width 660 mm
 Seat Height 810 mm Fixed Height
 Seat Length 600 mm
 Ground Clearance 270 mm
 Wheel Base 1,160 mm
 Rider Height Ideal for Riders up to 200cm Tall
Weights
 N.W of 15Ah Battery 4.34 kg
 N.W of 20Ah Battery 5.12 kg
N.W of Standard ACE + Battery 32.3 kg
 N.W of ACE Plus/Rally + Battery 36 kg
Max Loading 180 kg
Inclusions
 In Box Bike, 48V Battery, 2A AUS Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.
*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.
